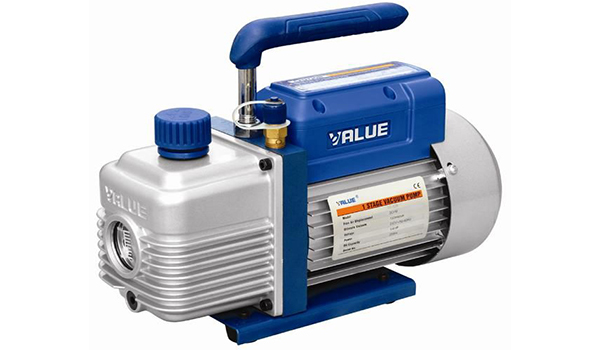

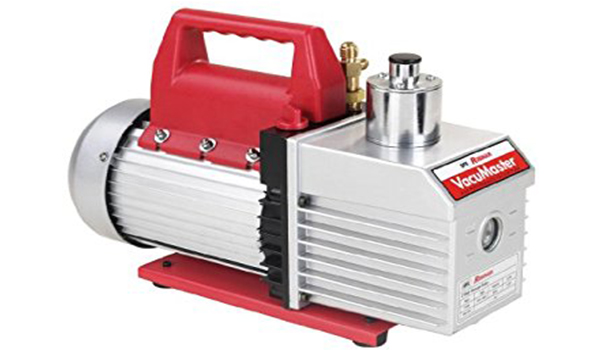

Product

• Intergrated body structure, better accuracy, higher ultimate vacuum
• Forced oil cycling system, more reliable, longer lifetime
• Big sight glass for monitoring oil level

Single Stage

Item No.		VE115N	VE125N	VE135N	VE160N	VE180N
Flow Rate	50 Hz	1.8 CFM	2.5 CFM	3.5 CFM	6 CFM	8 CFM
		51 l/min	70 l/min	100 l/min	170 l/min	226 l/min
	60 Hz	2.0 CFM	3.0 CFM	4.0 CFM	7.0 CFM	9.0 CFM
		57 l/min	84 l/min	113 l/min	198 l/min	254 l/min
Ultimate Vacuum		2 Pa	2 Pa	2 Pa	2 Pa	2 Pa
		150 micron	150 micron	150 micron	150 micron	150 micron
Power		1/4 HP	1/4 HP	1/3 HP	1/2 HP	3/4 HP
Inlet Port		1/4 “ Flare	1/4 “ Flare	1/4 “ & 3.8 “ Flare	1/4 “ & 3.8 “ Flare	1/4 “ & 3.8 “ Flare
Oil Capacity		250 ml	250 ml	250 ml	415 ml	660 ml
Dimensions (mm)		290X124X224	290X124X224	318X124X234	338X138X224	395X145X257
Weight		6.6 kg	7.1 kg	8.0 kg	9.9 kg	14.6 kg

Dual Stage

Item No.		VE215N	VE225N	VE245N	VE260N	VE280N	VE2100N
Flow Rate	50 Hz	1.5 CFM	2.5 CFM	4.5 CFM	6 CFM	8 CFM	10 CFM
		42 l/min	70 l/min	128 l/min	170 l/min	226 l/min	283 l/min
	60 Hz	1.8 CFM	3.0 CFM	5.0 CFM	7.0 CFM	9.0 CFM	12.0 CFM
		50 l/min	84 l/min	142 l/min	198 l/min	254 l/min	340 l/min
Ultimate		2X10-1 Pa	2X10-1 Pa	2X10-1 Pa	2X10-1 Pa	2X10-1 Pa	2X10-1 Pa
Vacuum		15 micron	15 micron	15 micron	15 micron	15 micron	15 micron
Power		1/4 HP	1/3 HP	1/2 HP	3/4 HP	1 HP	1 HP
Inlet Port		1/4 “ Flare	1/4 “ Flare	1/4 “ & 3.8 “ Flare	1/4 “ & 3.8 “ Flare	1/4 “ & 3.8 “ Flare	1/4 “ & 3.8 “ Flare
Oil Capacity		200 ml	200 ml	325 ml	580 ml	500 ml	590 ml
Dimensions (mm)		308X124X224	318X124X234	338X138X244	395X145X257	395X145X257	395X145X257
Weight		7.5 kg	8.5 kg	10.4 kg	15.8 kg	16.2 kg	16.7 kg
